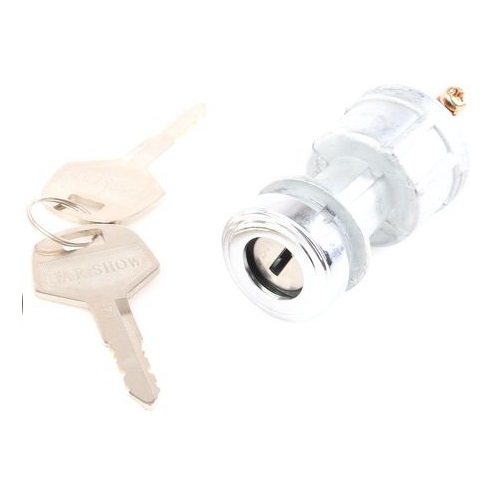

Ignition Switch Acc – Off – Ign – Start
Part Number: ACX3556BL
Shipped from NZ Warehouse 808
$35.79
• 4 Position, Acc – Off – Ign/Acc – Ign/Start. Supplied with 2 keys.
• 4 Stud terminals 10-32 U.N.F. x 8.00mm long.
• Key removable in Off position only.
• Mounting stem: 19.00mm diameter.
• Fits panel thickness up to 8.00mm.
| Warranty | One Year |
| Number of Terminals | 4 |
| Power Rating [Amp] | 30 |
| Switch Action | Acc – Off – ign – Start |
| Voltage | 12 |
| Lamp Colour/s | Not Applicable |
| Mount Diameter | 19mm |
| Mount Length | 8mm |
| Number of Poles | 1 |
| Number of Positions | 4 |
| Switch Type | Ignition |
| Item Type | Switch |
| Switch Illumination | Non Illuminated |
| Weight | 0.6 kg |
|---|
