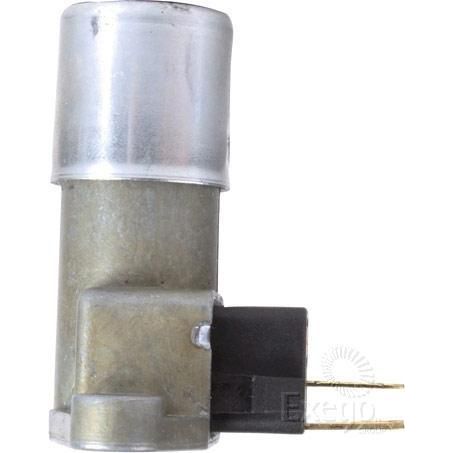

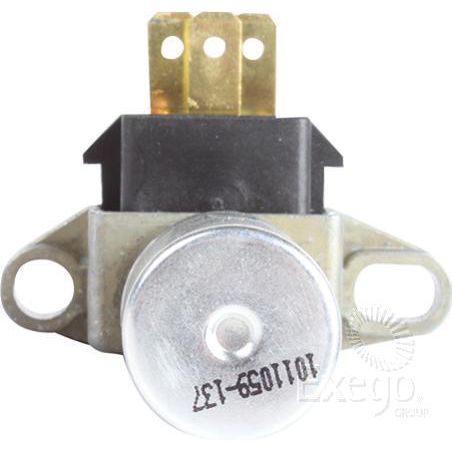

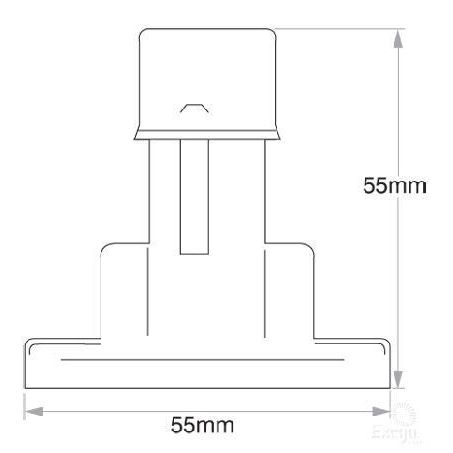

Head Lamp Dip Switch on – On
Part Number: ACX3450
Shipped from NZ Warehouse 808
$14.95
| Number of Terminals | 3 |
| Power Rating [Amp] | 16A |
| Switch Action | On – On – SPST |
| Voltage | 12/24 |
| Lamp Colour/s | Not Applicable |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Switch Type | Head Lamp / Dip |
| Item Type | Switch |
| Switch Illumination | Non Illuminated |
• Suits: Holden FB – HJ, Jeep 1974 – 1982.
• On – On push button switch, depress – release for Low beam and depress – release for High beam
• Single Pole, Double Throw
• Replaces: 1997028, 5461816, 1997037, D808
| Weight | 0.6 kg |
|---|
Related products
-
OEX

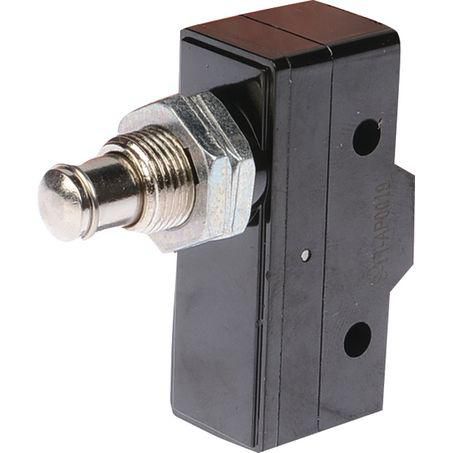

Micro Switch On – Off /Off – On
